转换法兰

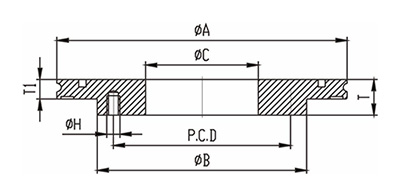

截面图:
详细信息
下载
| ISO转换法兰 | |||||
| Model No | ISO160/63 | ISO160/100 | ISO200/100 | ISO200/160 | ISO250/160 |
| A | 180 | 180 | 240 | 240 | 290 |
| B | 130 | 165 | 165 | 225 | 225 |
| C | 70 | 102 | 102 | 153 | 153 |
| P.C.D | 110 | 145 | 145 | 200 | 200 |
| H | M8 | M8 | M8 | M10 | M10 |
| T | 22 | 25 | 20 | 25 | 22 |
| T1 | 12 | 12 | 12 | 12 | 12 |
| Material | 304S.S | 304S.S | 304S.S | 304S.S | 304S.S |
| Parts No | DI0064 | DI0065 | DI0066 | DI0067 | DI0068 |
