内焊法兰

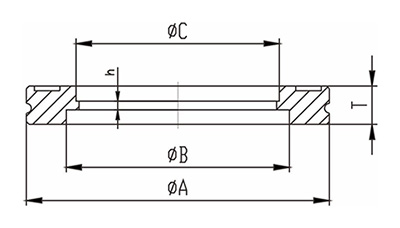

截面图:
详细信息
下载
| ISO内焊 | |||||||||
| Model No | ISO63 | ISO80 | ISO100 | ISO160 | ISO200 | ISO250 | ISO320 | ISO400 | ISO500 |
| A | 95 | 110 | 130 | 180 | 240 | 290 | 370 | 450 | 550 |
| B | 70 | 83 | 102 | 153 | 213 | 261 | 318 | 400 | 501 |
| C | 63.7 | 76.4 | 101.8 | 152.9 | 203.7 | 254.5 | 305.3 | 406.9 | 508.5 |
| T | 12 | 12 | 12 | 12 | 12 | 12 | 17 | 17 | 17 |
| h | 4.75 | 4.75 | 4.75 | 4.75 | 4.75 | 4.75 | 6 | 6 | 6 |
| Material | 304S.S | 304S.S | 304S.S | 304S.S | 304S.S | 304S.S | 304S.S | 304S.S | 304S.S |
| Parts No | DI0001 | DI0002 | DI0003 | DI0004 | DI0005 | DI0006 | DI0007 | DI0008 | DI0009 |
